Description

CAT-M&NB-IoT Module

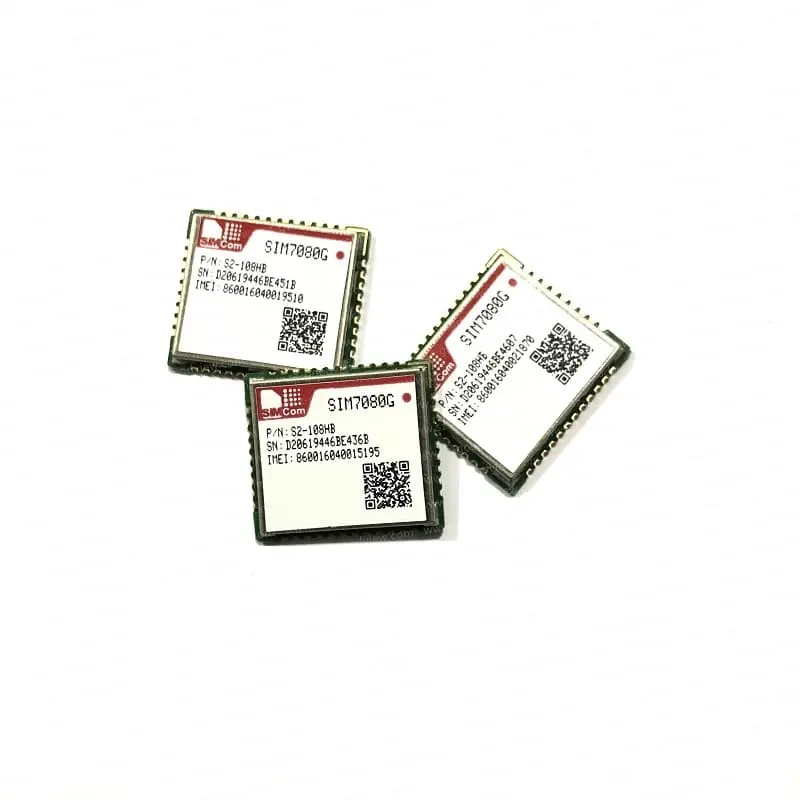

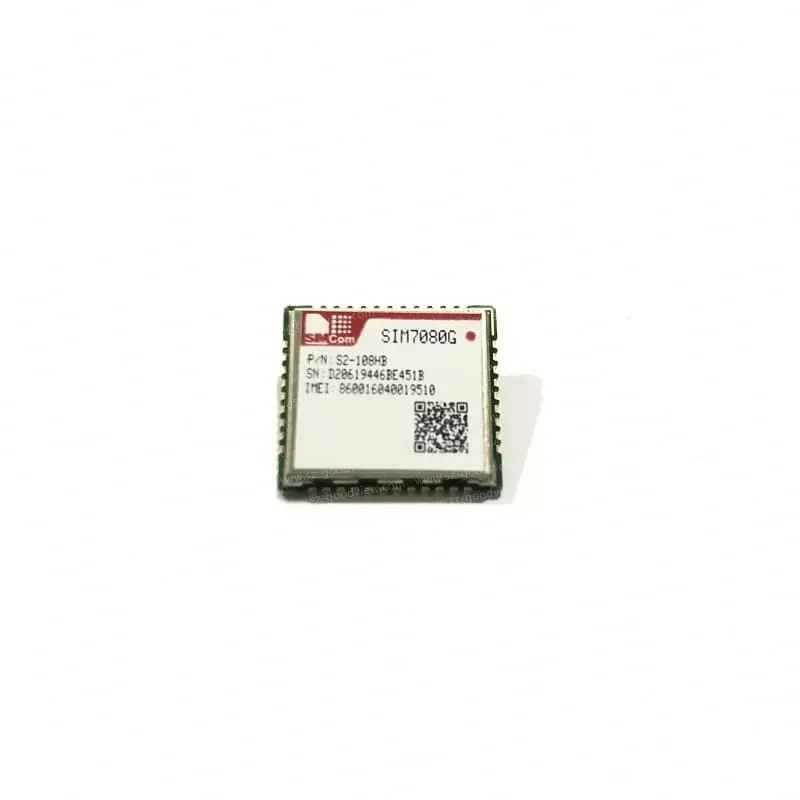

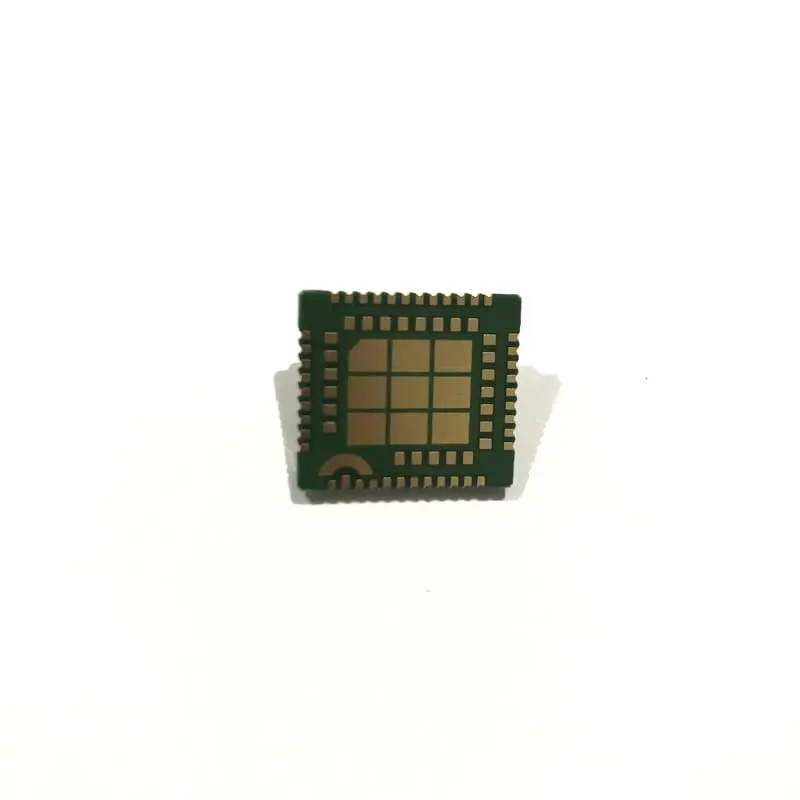

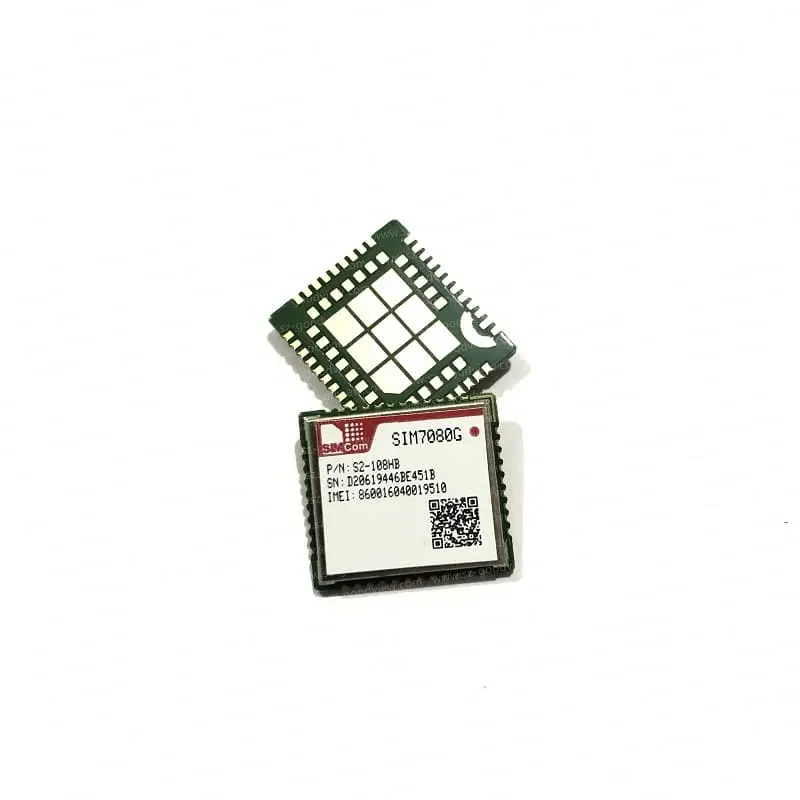

The SIM7080G is Multi-Band CAT-M and NB-IoT module solution in a SMT type .

It has strong extension capability with rich interfaces including UART, GPIO, PCM, SPI, I2C etc. The module provides much flexibility and ease of integration for customer’s application.

It is designed for applications that need low latency, Low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, the SIM7080G module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring , E-health etc..

Product Advantages
With Power Saving Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7080G can extend battery life to 10 years.

CAT-M, NB-IoT dual mode

The package of SIM7080G is compatible with SIM868

General Features
Support Bands:
CAT-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26 /B27/B28/B66/B85
CAT-NB: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28 /B66/B71/B85
LTE RF Power Class: 5 (Typ. 21dbm)
Control Via AT Commands
Supply voltage range: 2.7V-4.8V
Operation temperature: -40°C to +85°C
Dimensions: 17.6 X 15.7 X 2.4 mm
Weight: 1.4g±0.2g

Date
Cat-M: Uplink: 1119Kbps Downlink:589Kbps
NB-IoT: Uplink: 150Kbps Downlink:136Kbps
Other Features
TCP/UDP
HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT
Ayla Cloud
Firmware update via USB
FOTA
EAT

Interfaces
UART
SIM card
PCM/I2S/SPI
I2C
GPIO
ADC
USB
Embedded SIM (optional)
Consumption
PSM: 3.2uA
Sleep: 0.6mA @PTW=40.96s eDRX=81.92s
Idle: 10mA

Certifications(plan)
RoHS\REACH\JATE\Telec\Docomo\KDDI\Softbank\RCM\CE(RED)\GCF\Deutsche Telekom\FCC\PTCRB\AT&T\Verizon\T-Mobile\US Cellular\IC
