Description

NB-IoT&GNSS Module

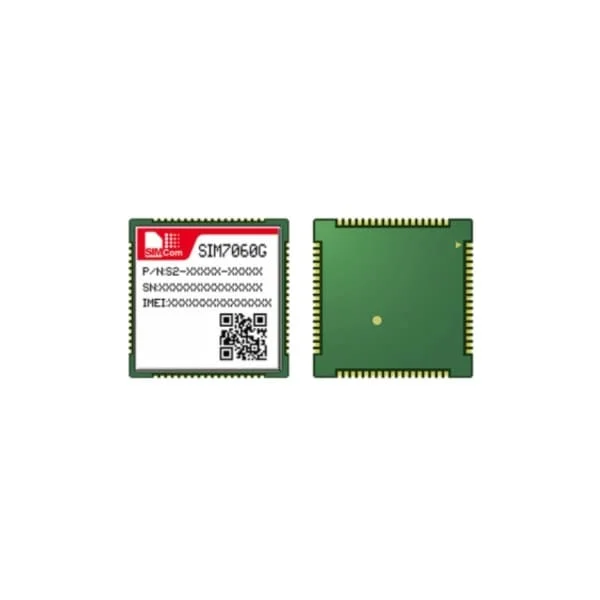

The SIM7060G is Multi-Band LTE-FDD NB-IoT and GNSS module solution in a SMT type .

It has strong extension capability with rich interfaces including UART, GPIO,SPI,I2C etc. The module provides much flexibility and ease of integration for customer’s application.

It is designed for applications that need low latency, Low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, the SIM7060G module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring , E-health etc..

Product Advantages
With Power Save Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7060G can extend battery life to 10 years.

SIM7060G provides deeper coverage enhancement compared to GSM.

GNSS support:GPS&Beidou&GLONASS

The package of SIM7060G is compatible with SIM7000x.

General Features
Suppot Bands:
B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B
20/B25/B26/B28/B66/B70/B71
Control Via AT Commands
Supply voltage range: NB-IoT 2.1V-3.6V
GNSS 2.8V-4.5V
Operation temperature: -40℃to +85℃
Dimensions: 24 X 24X 2.4mm
Weight: 3.2g

Date
Uplink: 150Kbps Downlink:126Kbps

GNSS
GPS&Beidou&GLONASS
Other Features
TCP/UDP
HTTP/HTTPS/TLS/DTLS/DNS/NTP/PING
LWM2M/COAP/MQTT
Ayla Cloud*
Firmware update via UART
FOTA
EAT*

Interfaces
UART
SIM card
SPI
I2C
GPIO
ADC
Consumption
PSM: 3.4 uA
sleep: 0.4mA
Idle: 5.6mA
eDRX: 30uA （eDRX=655.36s）

Certifications(plan)
CE(RED)\FCC\RoHS\REACH
