Description
Module and ordering identity
SIM7000E-N is a solder-down cellular module for low-throughput IoT equipment. Select the complete ordering code and firmware for your destination network before designing or purchasing.

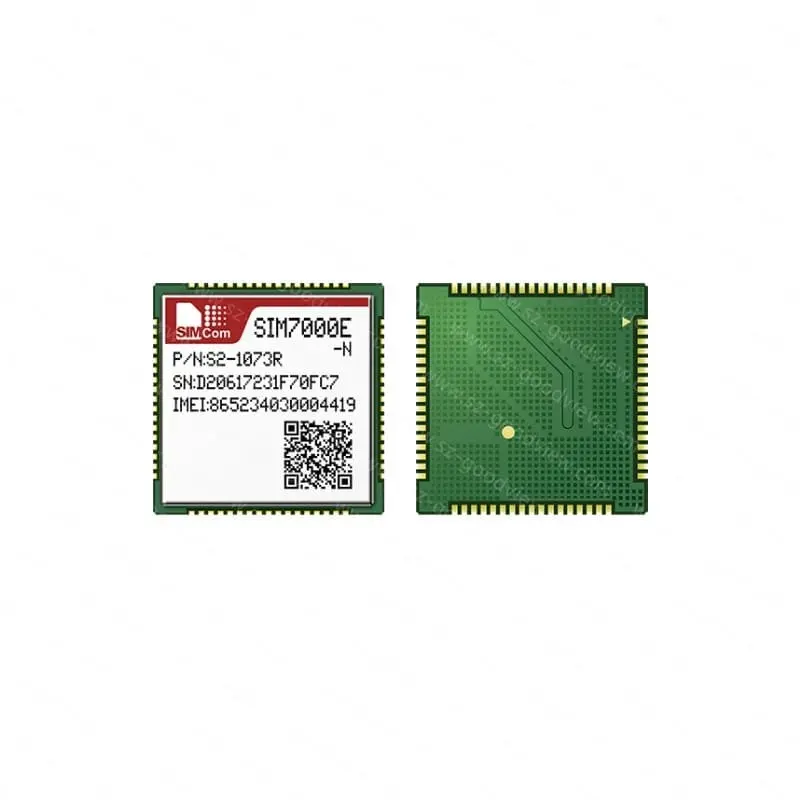

The reference photograph is labeled SIM7000E-N, P/N S2-1073R. This identifies the pictured sample; the supplied P/N, hardware revision, firmware and batch are confirmed in the quotation. Antennas, SIM card, host board and development accessories are not automatically included.
Reference specifications
Source: Hardware Design V1.09 (2021-04-19), pages 9-12. These are module-level reference values, not measured system performance or a current batch inspection.
| Form factor | LCC, 68 pins; 24 x 24 x 2.6 mm. |
|---|---|
| Cat-M1 bands | Not supported in Hardware Design V1.09 |
| Cat-NB1 bands | B3/B8/B20/B28 |
| GSM / EDGE | Not supported in Hardware Design V1.09 |
| Peak data rates | Cat-NB1: 34 kbps downlink / 66 kbps uplink. |
| Supply | 3.0-4.3 V at the module supply; not an external development-board input rating. |
| Temperature | -40 to +85 C reference operating range. Follow the matched hardware guide and thermal design. |
| GNSS | Not marked as supported for E-N in Hardware Design V1.09; do not copy SIM7000E GNSS features. |
| Host integration | UART, USB and SIM integration follow the variant-specific hardware guide. Check pin functions, logic levels, power transients and firmware support before layout. |
Variant and design checks
SIM7000E-N is distinct from SIM7000E. Hardware Design V1.09 identifies E-N as NB-IoT only, with B3/B8/B20/B28, without Cat-M1 or GSM. The earlier Cat-M1 heading and 375 kbps claim did not apply to that table column. E-N is not a separately listed variant in the current public product comparison; obtain its current ordering and lifecycle information with your enquiry.
PSM and eDRX depend on network configuration and application duty cycle; a ten-year battery life is not guaranteed for a finished design. Mechanical or AT-command similarities to SIM900/SIM800F do not establish a direct replacement: review power, pins, RF, firmware and migration instructions.
Documents and compliance
SIMCom SIM7000X official product and document center lists SIM7000_Series_SPEC_20240709 and Hardware Design V1.09. The 20240709 document requires manufacturer login and its body was not available for this review. The local three-page V:2020.03 specification is an archived version; the 69-page Hardware Design V1.09 is dated 2021-04-19. These are technical documents, not certificates.
Request the matched specification, hardware guide, firmware notes and independent compliance documents during enquiry follow-up. Manufacturer file listings include certificates and test reports with different model/revision scopes. Labels, historical files and family certification tables do not independently establish the certification or current validity of the quoted module or assembled board.
Related products and enquiry
Send your destination country/operator, required radio modes, host interface, quantity and accessories with your BOM enquiry. Use the Datasheet Center for related references. Exact P/N, quotation scope, batch photos and applicable compliance files can be confirmed during follow-up.
