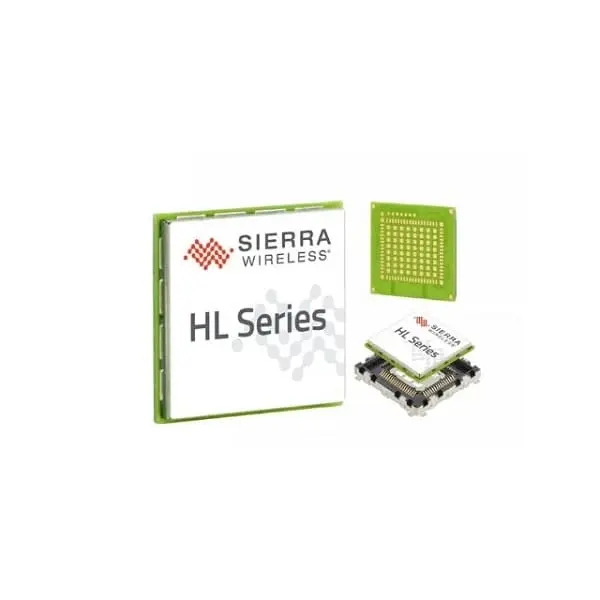

LPWA RC5100 Cat-M1 and Cat-NB2

Cat-M1 and Cat-NB2

15 x 18 x 2.4 mm [LGA]

Description

Cellular

• Multi-mode LTE Cat-M1 and Cat-NB2: B1-5, B8-10, B12-14, B17-20, B25-28, B66

• LTE: Cat-M1 (DL 300kbps/UL 375kbps peak)

• LTE: Cat-NB2 (DL 27.2kbps/UL 62.5kbps)

• Single RX/TX antenna port Hardware Specs

Dimensions: 15 x 18 x 2.4 mm [LGA]

Chipset: MDM9205 Host Interfaces

• 8-wire UART

• USB Peripheral Interfaces

• 7xGPIO, RTC, SIM

• PCM Temperature Ranges

• -30C to +70C (operating class A)

• -40C to +85C (operating class B)

Input voltage: 3.2V to 4.5V

Key Features

• Compatible with HL Series from 2G/3G/4G (Cat-4, Cat-1)

• Very low power consumption in Idle mode

• Very low power consumption with PSM support

• Very low power consumption with eDRX support

• Extended Coverage mode support

• Embedded TCP/IP stack with TCP, UDP, FTP, HTTP

• Embedded Security with HTTPS, Secure socket, Secure Boot

• Embedded SIM (Ready-to-Connect)

• Extended power supply range

• VoLTE*, Voice (Digital)*

• Optional GNSS

• Development tools: HL Series development kit, downloading tool, trace tool Standard Features

• Secure boot prevents unauthorized code on the target

• Free, unlimited FOTA through AirVantage® FOTA Edition Certification and Approvals

• FCC, PTCRB, IC,GCF, JRF, JPA, KC

• Planned Carriers: Sierra Wireless, Verizon, AT&T, Vodafone
