Description
Key Features
Extremely compact LTE Cat M1/NB1/NB2* module with ultralow power consumption
Integrated RAM and flash
Super slim profile in an LGA package
Embedded with abundant Internet service protocols
Support for VoLTE* (Cat M1 only), QuecLocator?, PoLTE* and DFOTA
A rich set of external, multi-band interfaces that ensure convenient applications
Fast time-to-market: reference designs, evaluation tools and timely technical support minimize time and efforts in design and development
Robust mounting and interfaces
Overview
The BG95xA-GL is a series of ultra-compact LPWA modules with an integrated GNSS engine which supports LTE Cat M1 and LTE Cat NB1/NB2* bands. It is fully compliant with 3GPP E-UTRA Release 13/14* specification and provides global carrier band combinations.
The series features the MIPS 5150 processor and ultra-low power consumption by leveraging the integrated RAM and flash to achieve extremely low current consumption in various standby/hibernation modes, including 3GPP PSM and eDRX. The BG95xA-GL also contains a GNSS and cellular-based location engine that supports GPS, GLONASS, Galileo, Beidou and QZSS. BG95xA-GL also boasts a comprehensive hardware-based security feature – Integrated Security Elements (ISE).

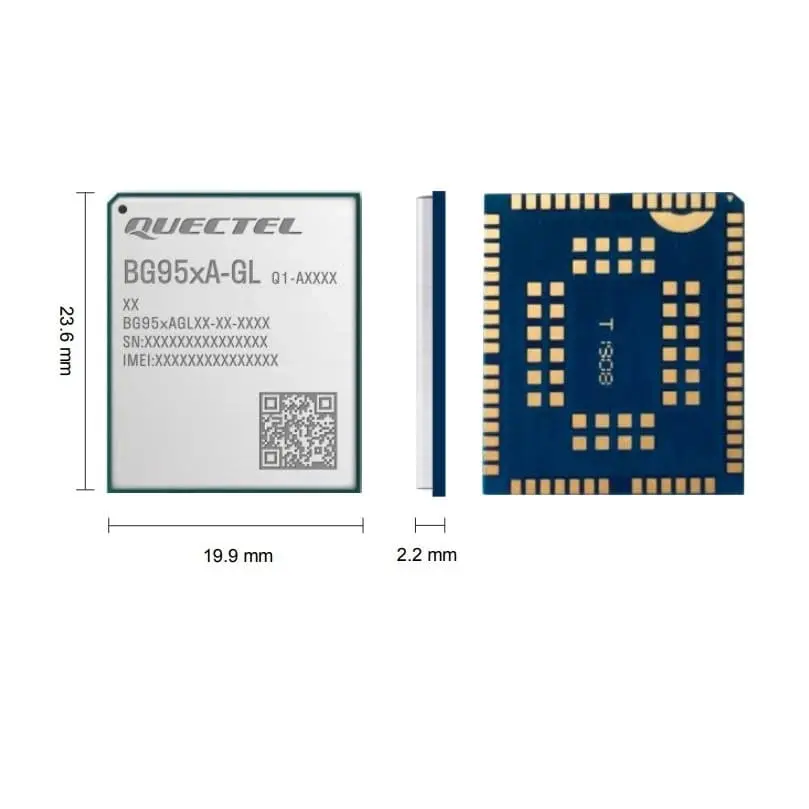

With an ultra-compact SMT form factor of 23.6mm ×19.9mm × 2.2mm and a high integration level, the series enables integrators and developers to design applications easily leveraging the its low-power consumption and compact structure. The BG95xA-GL’s advanced LGA package allows for fully automated manufacturing required for large-scale applications. A rich set of Internet protocols, industry-standard interfaces and abundant functionalities allows the series to serve a wide range of IoT applications, such as wireless POS, smart metering, tracking, wearable devices, and many more.
*under development
