LE910C1-EU selection and integration
Telit LE910C1-EU is an LTE Cat 1 variant of the LE910Cx Linux family. LE910C4-EU is the separate Cat 4 variant. Compare the bare LGA module and Mini PCIe card forms for your host. Our team can confirm the supplied configuration during your inquiry.

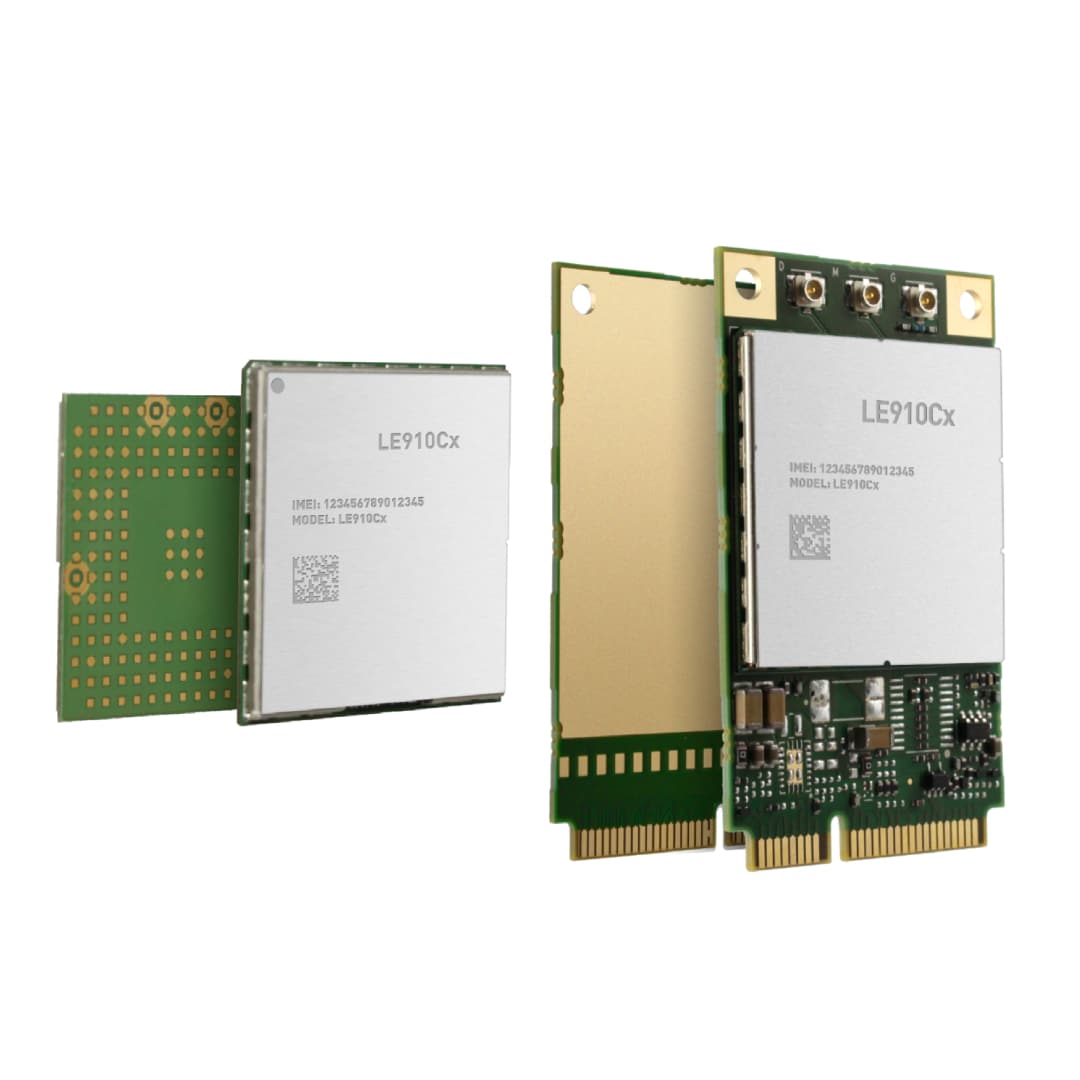

LGA module and Mini PCIe card options

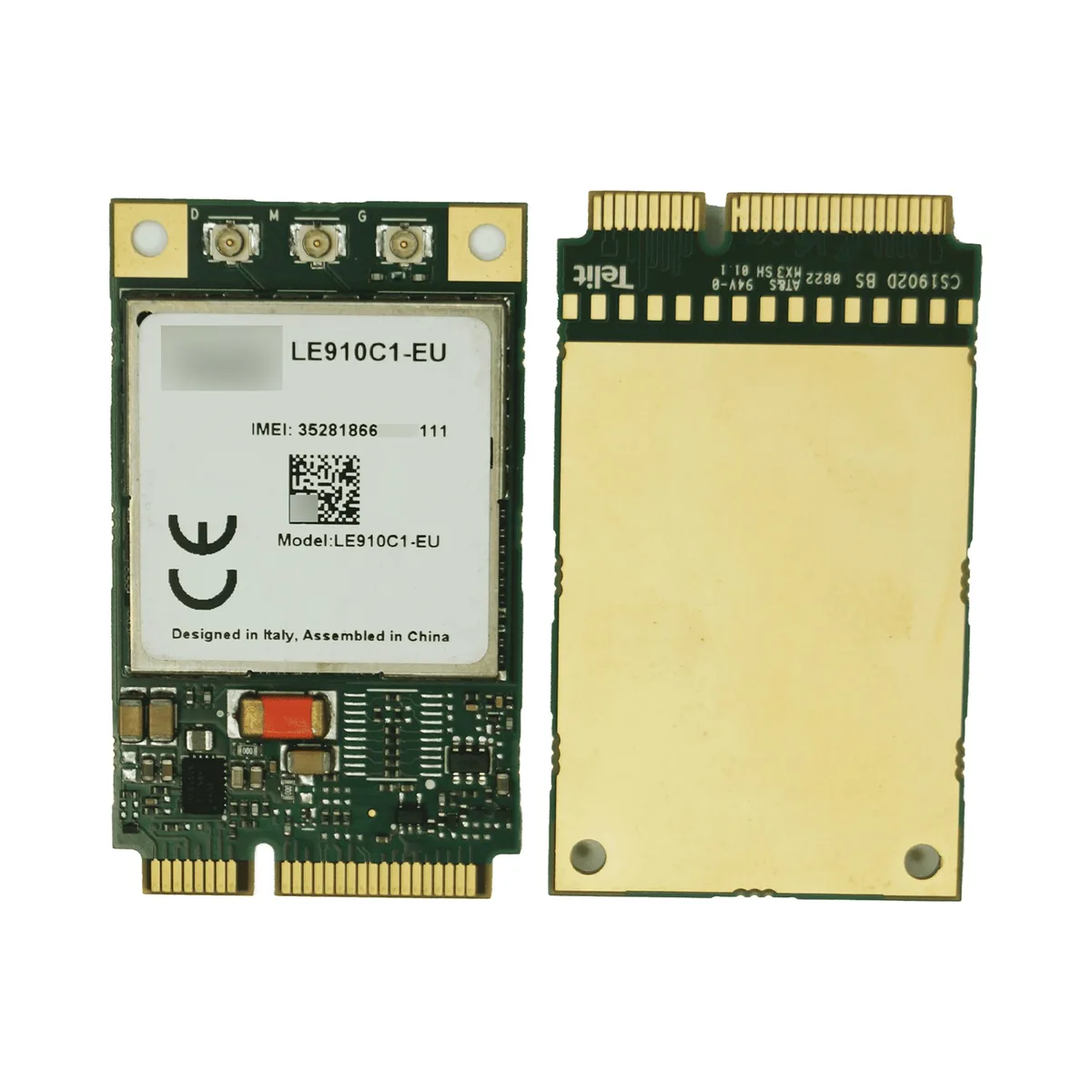

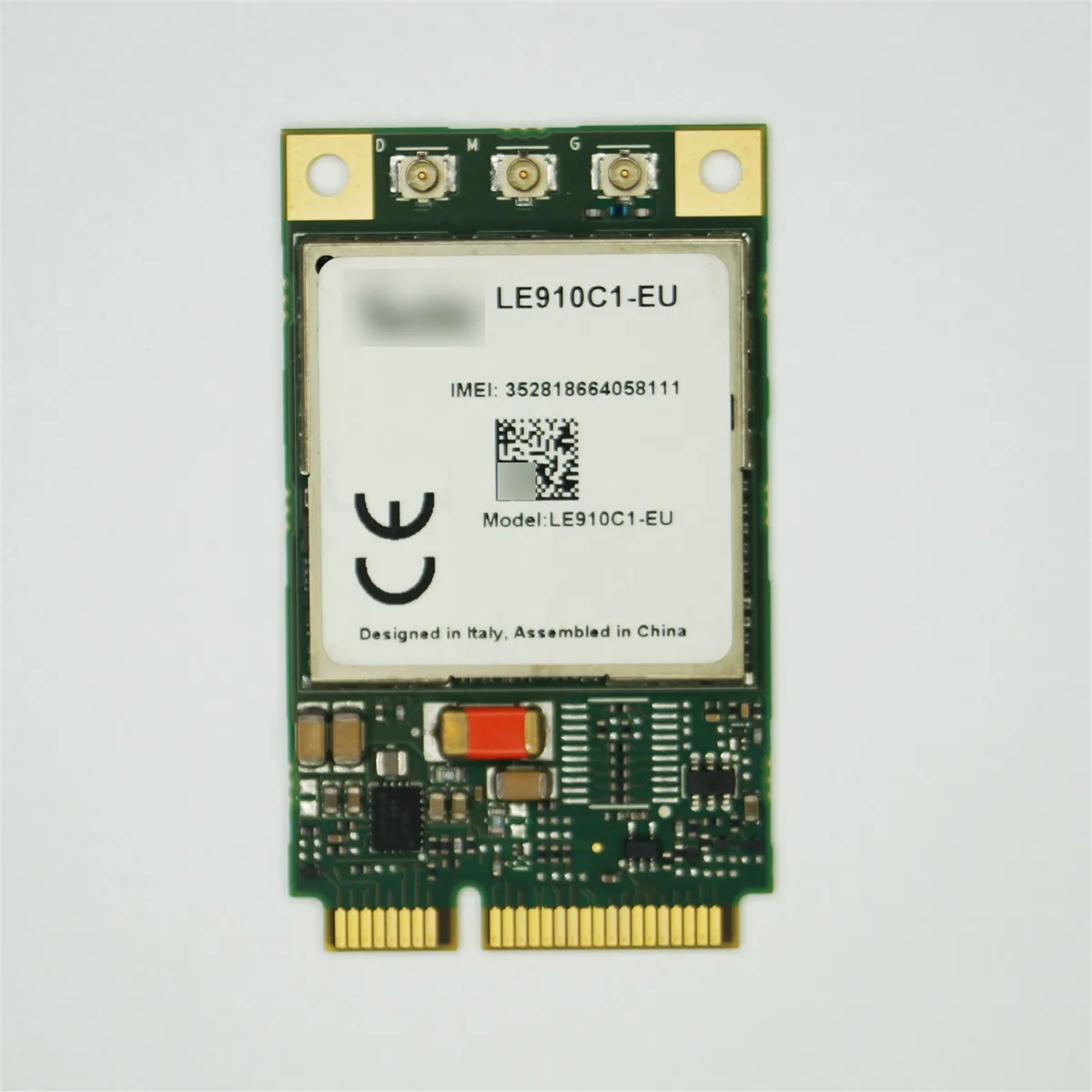

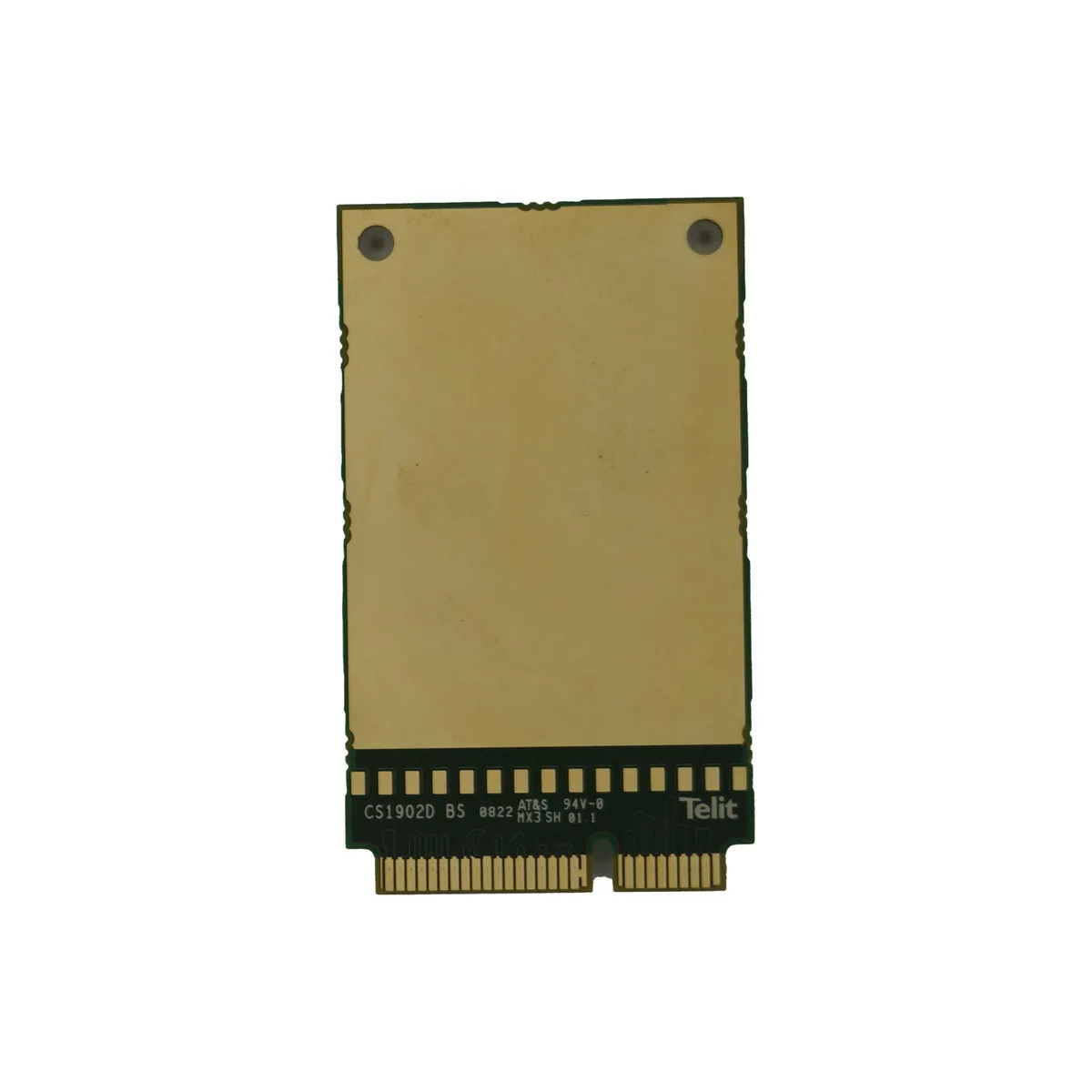

The existing card photographs show LE910C1-EU in Mini PCIe form. Bare LGA is a separate integration option described below. Compare the package and board requirements, then discuss your destination network, host interface and required configuration with our team.
LGA and Mini PCIe comparison
Sources: Telit Cinterion LE910Cx Linux Product Brief [11.2025] and LE910Cx Mini PCIe Series Linux Product Brief [07.2025], page 2. Values below belong to their respective hardware forms.
| Bare LGA module | 28.2 x 28.2 x 2.2 mm; 181-pin LGA. Supply 3.4-4.2 V, nominal 3.8 V. |
|---|---|
| Mini PCIe card | 51 x 30 x 3.2 mm; the product brief lists 4.6 mm for a version with SIM holder. Supply 3.1-3.6 V, nominal 3.3 V. Confirm the ordered card and connector pinout against its hardware design. |
| Temperature | Both cited briefs list an industrial range of -40 to +85 C. Confirm the implementation and operating conditions for the chosen hardware. |
| Migration | Review pin assignments, supply, interfaces, firmware and RF design before substitution. Membership of the xE910 family does not guarantee a direct replacement in every host. |
EU variant reference
| LE910C1-EU | LTE Cat 1; theoretical maximum 10 Mbps downlink / 5 Mbps uplink. |
|---|---|

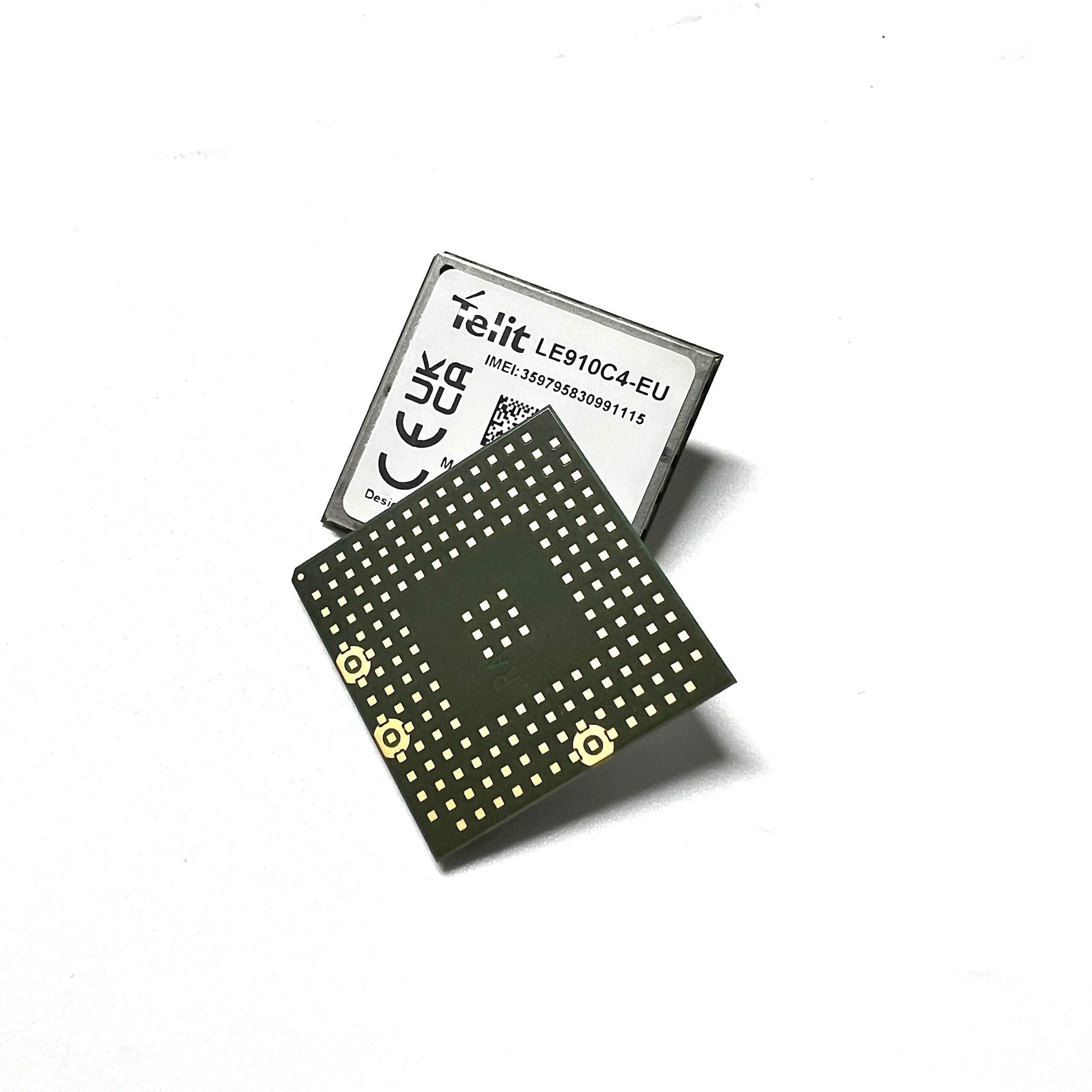

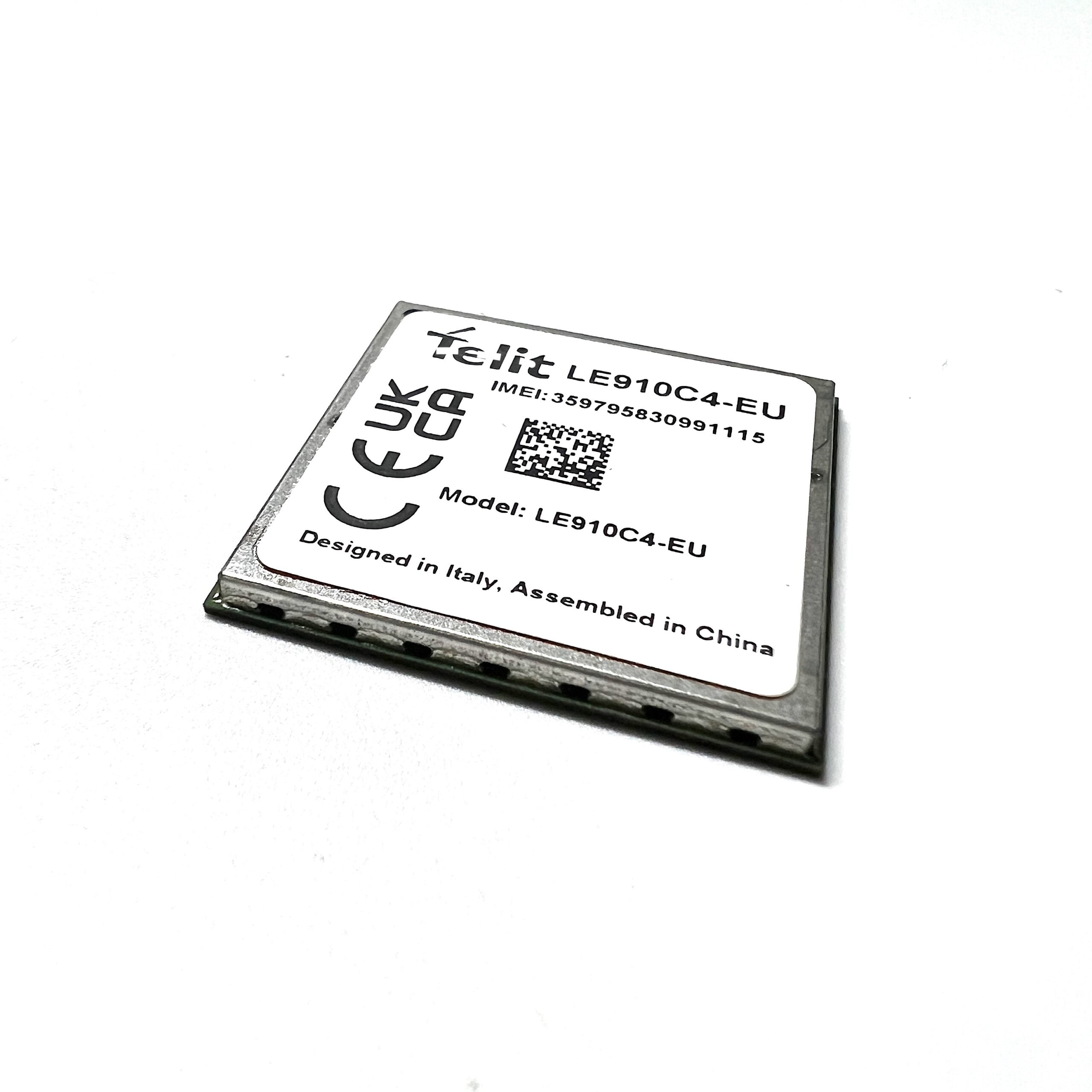

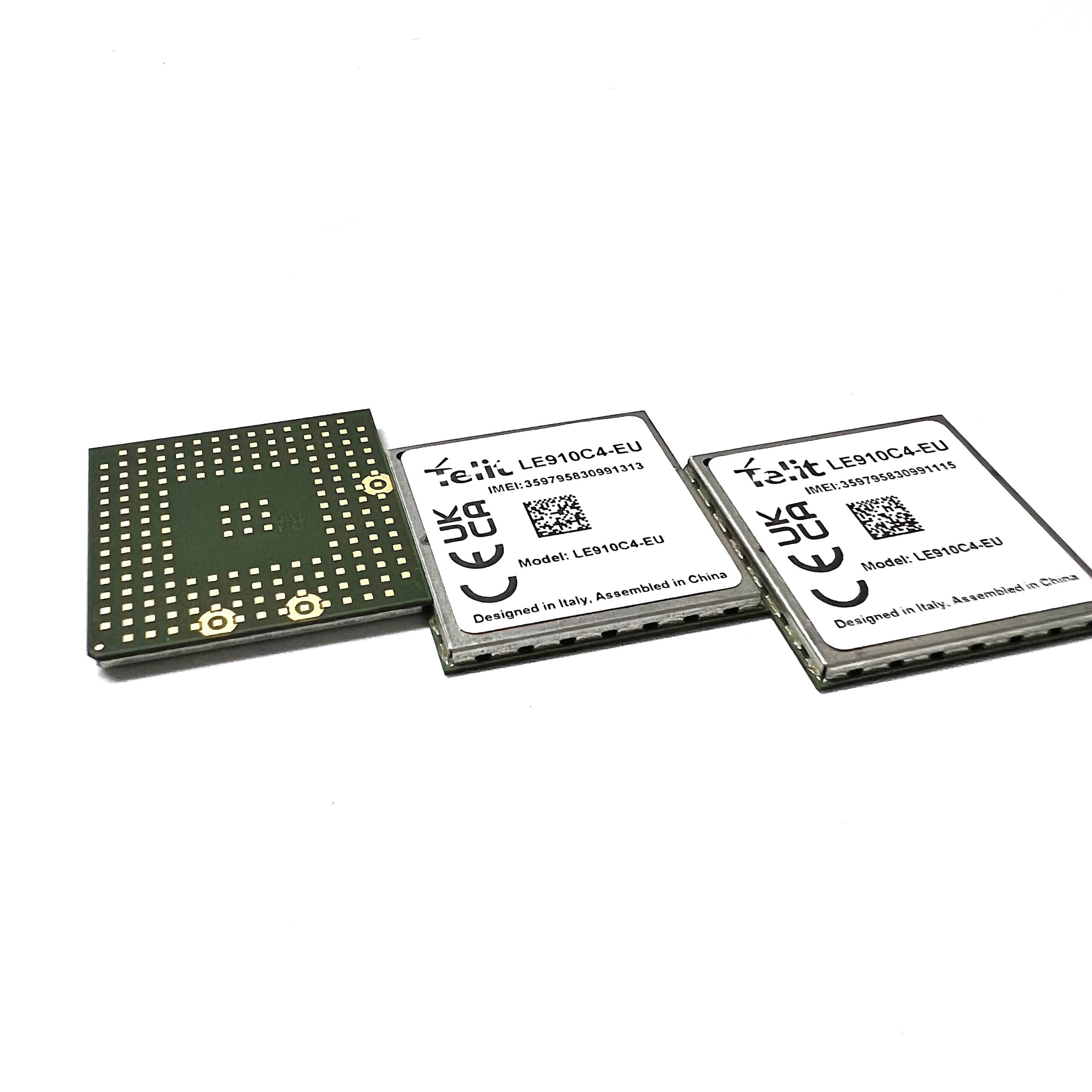

| LE910C4-EU | LTE Cat 4; theoretical maximum 150 Mbps downlink / 50 Mbps uplink. A separate option, not the model established by the current photographs. |
| EU radio bands | LTE B1/B3/B7/B8/B20/B28A; 3G B1/B3/B8; 2G B3/B8. Use the EU columns in the cited Linux briefs; EUX and WWX variants require their own documents. |
| Interfaces and optional features | USB 2.0 HS, UART and other interfaces depend on the hardware form and pinout. Confirm GNSS, SIM arrangement, voice, firmware and network support for the exact ordering code. |
Documents by hardware form
- LE910Cx Linux LGA product brief [11.2025]
- LE910Cx Linux Mini PCIe product brief [07.2025]
- LGA technical document access | Mini PCIe technical document access
Use the applicable hardware design for electrical limits, pin assignments and host integration. The two product briefs contain differences in their release and interface wording; they are not substitutes for the exact hardware design and firmware documentation.
Compliance documents for the quoted configuration
Telit publishes separate declarations by hardware form and revision in its RED document index. Some declarations restrict applicability to specific software versions. Match the declared product, hardware and software to the quoted item; a CE mark in the gallery or an LGA declaration does not prove certification of every Mini PCIe card or completed device. Request applicable documents during quotation.
Send your requirements
Share your preferred LGA or Mini PCIe form, destination country/operator, quantity, host interface and optional features with your BOM. Our team will confirm the ordering details, configuration, accessories and applicable documents after your inquiry. Browse our Datasheet Center for additional document selection.
