Description

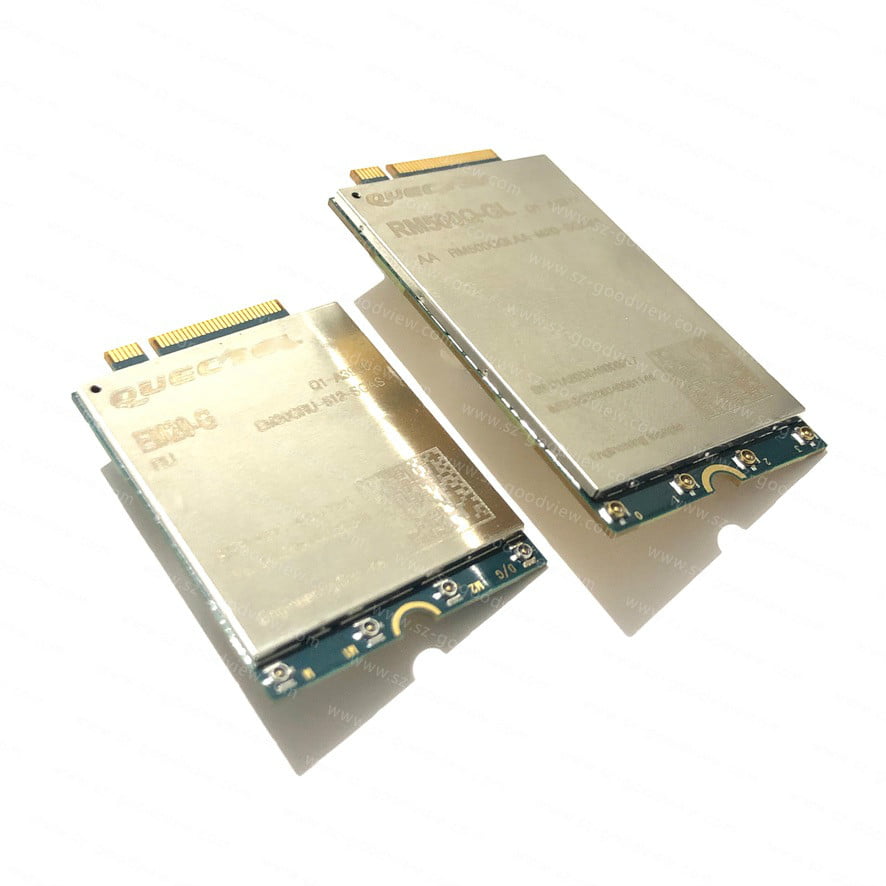

The RM50xQ is a series of 5G sub-6GHz M.2 modules measuring 52.0mm × 30.0mm × 2.3mm which meets the 3GPP Release 15 specification and is optimized for industrial and commercial IoT and eMBB applications. It supports both standalone (SA) and non-standalone (NSA) modes and delivers maximum downlink rates of 2.5Gbps and maximum uplink rates of 900Mbps. It is compatible with Quectel’s LTE-A category 6 module EM06, category 12 modules EM12 & EM120R-GL, and category 16 module EM160R-GL , enabling customers to migrate from LTE-A to 5G. The series consists of five variants to meet varied geographical requirements, which can be compared via the table above.
| RM500Q-GL | RM500Q-AE | |
| REGION PERATOR | Global (Exceptfor United stes) | Global (Except for China) |
| FREQUENCY BANDS | ||
| 5G NR | 3GPP Release 15 NSA/SAoperation, Sub-6 GHz | 3GPP Release 15 NSA/SA operation, Sub-6 GHZ |
| 5G NR NSA | n38/n41/n77/n78/n79 | n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/ n38/n40/n41/n48*/n66/n71/n77/n78/n79 |
| 5G NR SA | n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/ n38/n40/n41/n48*/n66/n71/n77/n78/n79 | n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/ n38/n40/n41/n48*/n66/n71/n77/n78/n79 |
| MIMO | DL: 4 × 4 MIMO on. /2/3//25/38/40/41/48/n66/n7/n78/7 | DL: 4 ×4 MIMO on n1/n2/n3/n7/n25/38/n40/n41/n48*/n66/n77/n78/n79 |
| LTE | UL: 2 × 2 MIMO on n41/n77/n78/n79 DL Cat 16/ UL Cat 18 | UL:2 ×2 MIMO on n41 DL Cat 16/ UL Cat 18 |
| LTE-FD | B1/B2/B3/B4/B5/B7/ B8/B12/B13/B14/B17/B18/ B19/B20/B25/B26/B28/B29/ | B1/B2/B3/B4/B5/B7/ B8/B12/B13/B14/B17/B18/ |
| B30/B32/B66/B71 | B19/B20/B25/B26/B28/B29/ B30/B32/B66/B71 | |
| LTE-TDD LAA | B34/B38/B39/B40/B41/B42/B43/B48 B46 | B34/B38/B39/B40/B41/B42/B43/B48 B46 (only support 2 ×2 MIMO) |
| LTE MIMO | DL:4 ×4 MIMO on B1/B2/B3/B4/B7/B25/B30/ | DL:4 ×4 MIMO on B1/B2/B3/B4/B7/B25/B30/ |
| WCDMA | B32/B34/B38/B39/B40/B41/B42/B43/B48/B66 B1/B2/B3/B4/B5/B8/B19 | B32/B34/B38/B39/B40/B41/B42/B43/B48/B66 B1/B2/B3/B4/B5/B6/B/B19 |
| GNSS | GPS/GLONASS/BeiDou (Compass)/Galleo | GS/GLONAS/BeiDou (Compass)/Galile |
| RM502Q-GL | RM502Q-AE | |
| REGION PERATOR | Global excepforUS/China/ Japan) | Global (Except for China) |
| FREQUENCY BANDS | ||
| 5G NR | 3GPP Release 15 NSA/SAoperation, Sub-6 GHz | 3GPP Release 15 NSA/SA operation,Sub-6 GHZ |
| 5G NR NSA | n38/n41/n77/n78 | n1/n2/3/n5/n7/n8/n12/n20/n25/n28/ n38/n40/n41/n48*/n66/n71/n77/n78/n79 |
| 5G NR SA | n1/2/3/n5/n7/n8/n12/n20/25/28/ n38/n40/n41/n48/n66/n71/n77/n78 | n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/ n38/n40/n41/n48*/n66/n71/n77/n78/n79 |
| MIMO | DL 4 × 4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78 | DL: 4 ×4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48*/n66/n77/n78/n79 |
| LTE | UL 2 × 2 MIMO on n41/n77/n78 DL Cat 20/ UL Cat 18 | UL: 2 ×2 MIMO on n41 DL Cat 20/ UL Cat 18 |
| LTE-FD | B1/B2/B3/B4/B5/B7/ B8/B12/B13/B14/B17/B18/ | B/B12/B13/B14/B17/B18/ |
| B19/B20/B25/B26/B28/B29/ B30/B32/B66/B71 | B19/B20/B25/B26/B28/B29/ B30/B32/B66/B71 | |
| LTE-TDD LAA | B34/B38/B39/B40/B41/B42/B43/B48 B46 | B34/B38/B39/B40/B41/B42/B43/B48 B46 (only support 2 ×2 MIMO) |
| LTE MIMO | DL 4 × 4 MIMO on B1/B2/B3/B4/B7/B25/B30/ | DL:4 ×4 MIMO on B1/B2/B3/B4/B7/B25/B30/ |
| WCDMA | B32/B34/B38/B39/B40/B41/B42/B43/B48/B66 B1/B2/B3/B4/B5/B6/B8/B19 | B32/B34/B38/B39/B40/B41/B42/B43/B48/B66 B1/B2/B3/B4/B5/B6/B8/B19 |
| GNSS | GS/GLONASS/BeiDou (Compass)/Galileo | GPS/GLONAS/BeiDou (Gompass)/Galileo |
| RM505Q-AE | ||
| REGION PERATOR | Global (Except for China) | |
| FREQUENCY BANDS | ||
| 5G NR | 3GP Release 15 NSA/SA operation, Sub-6 GHz | |
| 5G NR NSA | n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/ n38/n40/n41/n48*/n66/n71/n77/n78/n79 | |
| 5G NR SA | n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/ n38/n40/n41/n48*/n66/n71/n77/n78/n79 | |
| MIMO | DL: 4 ×4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48*/n66/n77/n78/n79 | |
| LTE | UL:2 ×2 MIMO on n41 DL Cat 16/ UL Cat 18 | |
| LTE-FD | B1/B2/B3/B4/B5/B7/ B8/B12/B13/B14/B17/B18/ | |
| B19/B20/825/B26/B28/B29/ B30/B32/B66/B71 | ||
| LTE-TDD LAA | B34/B38/B39/B40/B41/B42/B43/B48 B46 (only support 2 ×2 MIMO) | |
| LTE MIMO | ||
| WCDMA | B32/B34/B38/B39/B40/B41/B42/B43/B48/B66 B1/B2/B3/B4/B5/B6/B8/B19 | |
| GNSS | GS/GLONASS/BeiDou (Compass)/Galileo |
