5G M.2 TO USB3.0 KIT 5G Adapter

Support Quecel /Simcom 5G module

Supports USB2.0/3.0

5G M.2 to USB 3.0



Send Inquiry

Description

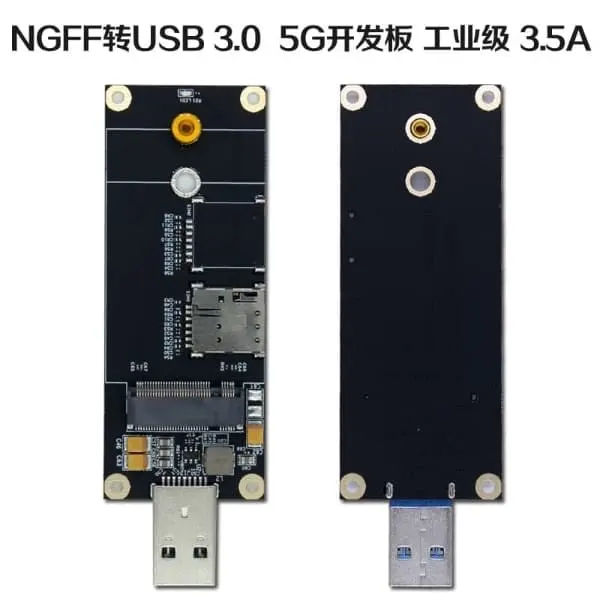

The product uses RICHTEK’s industrial-grade DC-DC chip, with an output current of up to 3A, which can meet the high power consumption requirements of 5G modules. It adopts USB3.0 interface, supports USB2.0/3.0 communication, and adopts USB3.0 communication protocol, which can meet 5G high-speed communication data transmission. The product supports SIM card hot-swap function (needs AT command to cooperate), reserved dual SIM card slot, supports dual card single standby function (this function requires module support).

Feature

1. The adapter board defaults to the SIM1 card socket, please pay attention when inserting the card to test.
2. For the direction of inserting the SIM card, refer to the silk screen instructions on the PCB.
3. The RM500Q module supports dual-card single-standby function, which can switch the cards corresponding to different SIM card slots through AT commands.
4. The module supports the SIM card hot swap function, and the module configuration command is required (AT+QSIMDET=1,1)
