Description
Hardware configuration
M.2 cellular-module USB board assembly. Use this page to select an adapter or assembled modem for evaluation and host integration. Confirm the board and modem configuration with your quotation.
Photographs and supplied items

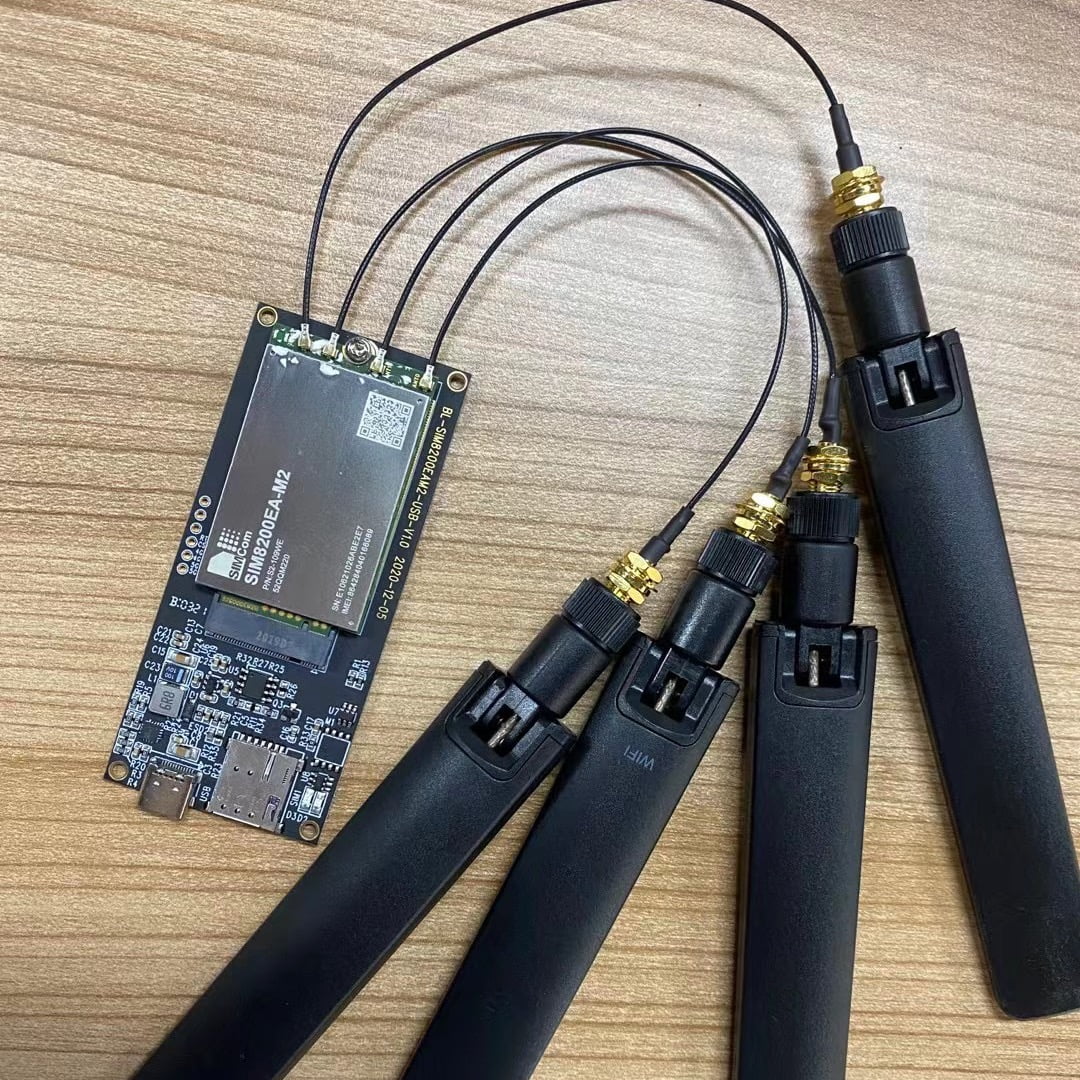

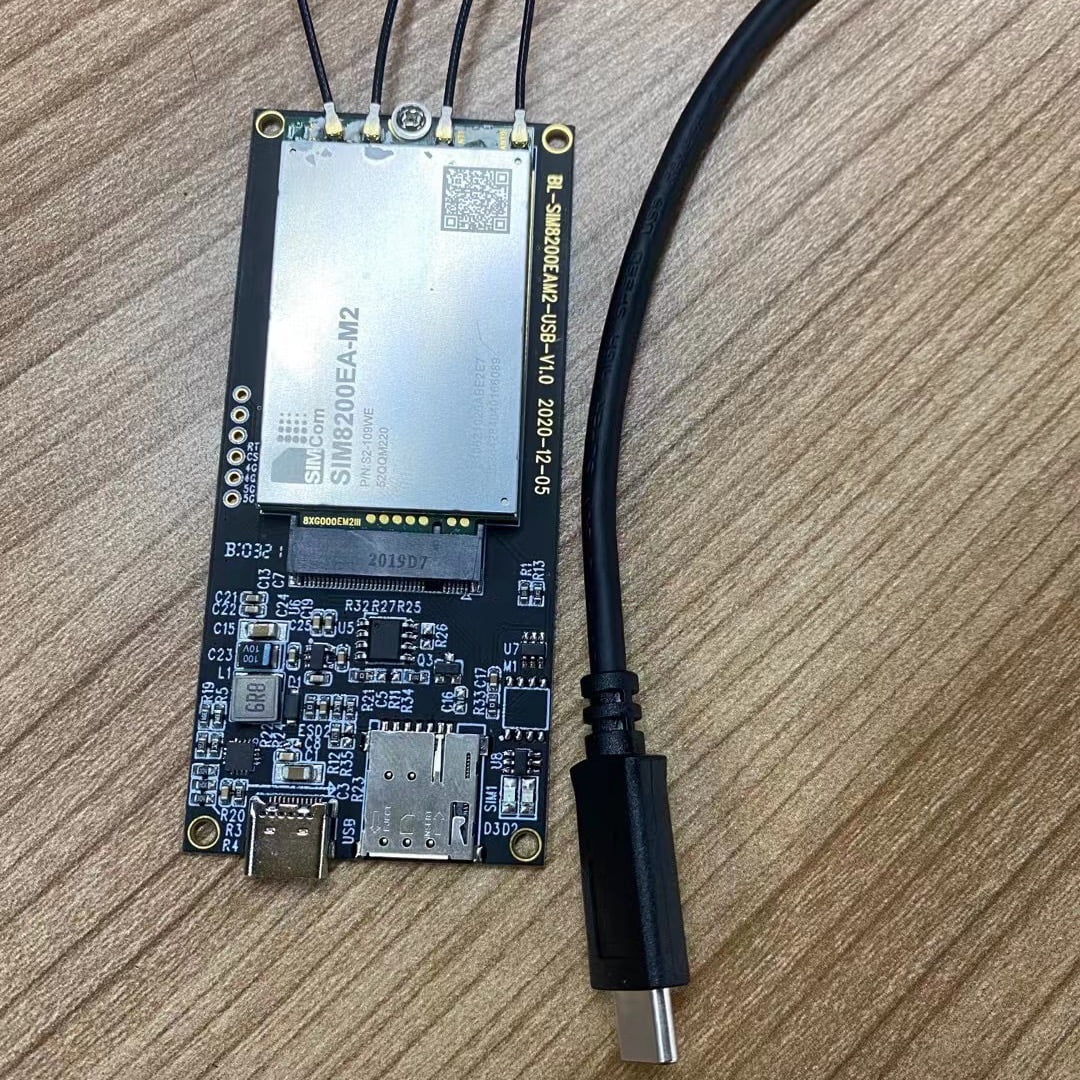

The photographs show SIMCom SIM8200EA-M2, P/N S2-109WE, on a board marked BL-SIM8200EAM2-USB-V1.0 and 2020-12-05. Four cabled antennas are pictured. A USB Type-C connector and SIM holder are visible. This is an assembly, not a bare SIM8200EA-M2 card listing.
| Sales form | M.2 cellular-module USB board assembly. Distinguish an unpopulated adapter from an assembly supplied with a modem. |
|---|---|
| Module / board identity | Order by complete module P/N and adapter revision, not by the generic 4G/5G title. Historical photos identify examples and do not establish current availability. |
| Kit contents | Specify board-only or board-plus-module, antennas, RF cables, SIM requirements, USB cable, enclosure and power accessories. Only the quotation establishes the included items. |
| Power and host | Obtain the board input rating, connector polarity, output rail, peak-current capability and host requirements before connection. |
| Network and performance | Determined by the installed module, firmware, antenna, SIM and network. An adapter does not add radio bands or certify operator acceptance. |
Integration checks
Confirm whether the quotation includes the SIM8200EA-M2 module, adapter, four antennas, RF cables, USB cable and any power supply. Antenna markings and connector count do not establish frequency coverage. The old Windows 2000/XP/Vista blanket support list is not a validated driver matrix.
Check mechanical clearance, cooling, antenna connectors, host driver version and application software before deployment. Do not insert or remove a module or SIM under power unless the matched instructions explicitly permit the operation.
Technical references
SIMCom provides an official SIM8200EA-M2 module page. Its module-level network and throughput information does not rate this adapter, its antenna set or its USB implementation. A board-specific hardware guide for the photographed BL revision was not located.
SIMCom SIM8200EA-M2 official module resources – module-level information, not a certification or performance report for the assembled board.
Request the applicable board specification, hardware instructions and compliance documents during enquiry follow-up. Adjacent-board manuals, module marks and historical family certificates do not establish the certification or tested performance of the quoted assembly. Current status and applicable hardware/software revisions require confirmation.
Related adapters and enquiry
Send the intended module, host model/OS, destination country/operator, quantity, connection requirements and accessory list with your BOM enquiry. Browse the Datasheet Center for related module references.
